Fox™ Valve Systems

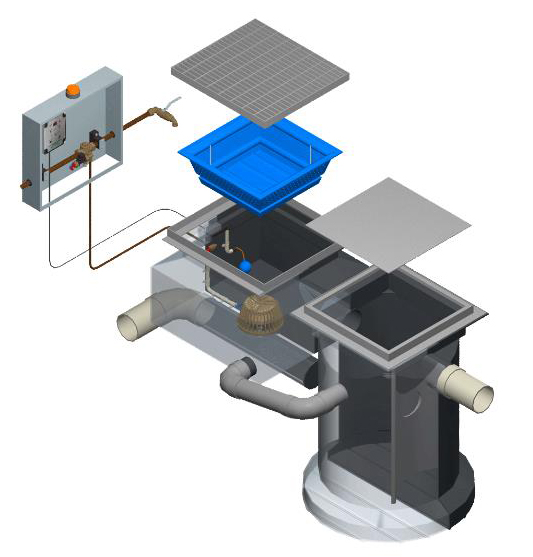

The Fox™ Valve system is a stormwater/ tradewaste diversion system designed to divert washdown and/or first flush stormwater runoff to trade waste to prevent pollution of downstream waterbodies.



Add to my enquiry

Benefits

There are two models for different applications:

Demand Driven Washdown Diversion System (DD600)

This unit diverts any run-off to trade waste when a wash operation is taking place. When washdown ceases, the system will divert any run-off to fill the chamber and leave through the stormwater outlet. It is most important that the area is left clean as there is no protection for the environment when a wash operation is not taking place.

First Flush Diversion System (FF600)

This is an effective control device for any unroofed washdown area automatically diverting wash water as well as the ‘first flush’ (if required) to sewer or treatment, whilst allowing unpolluted rain water to enter the stormwater network.

It is designed for use in areas where there is no guarantee that the wash bay will be left clean at the completion of a wash activity. Pollutants remaining on exposed areas can be dislodged by rain and carried into the stormwater network.

The Fox FF600 is designed to cleanse a site by capturing the initial runoff and diverting it to suitable treatment, as it is most likely that this initial runoff will carry with it any residual pollutants that have been left on the site.



Application

  • Industrial sites- ideal for machinery washdown areas, marinas, airports and loading bays
  • Bin & car wash facility
  • Marinas & slipways
  • Truck washdown
  • Rail yards
  • Vehicle dealerships
  • Kennels
  • All wash applications
  • bulk liquid storage facilities, service stations, refuelling areas or any site where there is a risk of hydrocarbon spills contaminating the stormwater network.
Fox Valve Product Guide
2.8 MB
pdf
FOX Systems Demand Driven
1.9 MB
pdf
FOX Systems First Flush
1.6 MB
pdf
